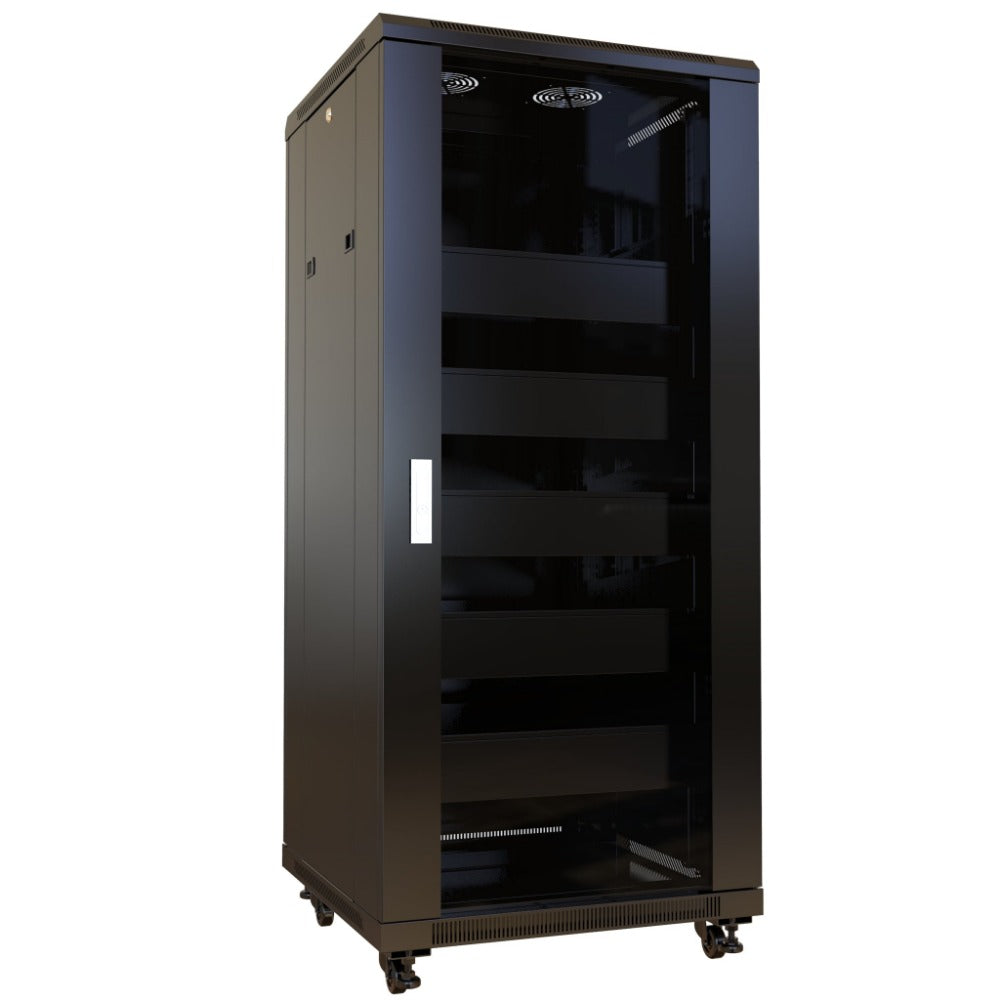

The RB-AV Series is a cost-effective and fully assembled enclosed rack system designed for A/V and Security applications. Fully assembled, the RB-AV Series includes pre-installed shelves, filler panels, casters and leveling feet.
Features
Constructed in light duty 16-gauge steel.
Includes two (2) pairs of EIA-310-D compliant square hole punched rails with 19” mounting.
Starter pack of M5 screws and cage nuts included.
For 10-32 hardware see the 1421CNABK Series.
Locking tempered glass front door is opens a full 180°.
Passive cooling vents located on top, bottom and sides.
Includes provision for optional fans on top panel.
Removable locking side panels.
Removable cable access panels on cabinet top and bottom.
Ships assembled - ready to install.
Specifications
Open frame bottom allows raised tile floor cable and air access.
Bottom of cabinet includes:
Four (4) adjustable leveling feet
Four (4) recessed casters
Includes 2 pre-installed shelves
Rails can adjust in depth in 25mm increments.
Grounding studs provided on frame.
Finished in smooth black powder paint.
Tested to nearly double the suggested load rating of 250 lbs.
RoHS Compliant.
